Plate extensions are fastened directly to the adaptor plate at the point where the greatest force is applied. The use of plate extensions makes sense wherever it is not necessary to use a cube directly on the adaptor plate. This saves weight and removes a connection, thus increases the rigidity of the overall system. The integrated double 20 mm cube enables the connection of up to 9 additional elements in all main directions. The M5 pro connections increase reliability for production measurements due to torsion-proof mounting.
- Application
- Extend
- Product Type
- Extension
- Extension Type
- Plate Extension VAST / MT
- Accuracy level
- Medium - CFX 3
- Measuring System Type
- VAST/MT
- Connection Type
- M5 Pro
- Connection Type Out
- M5 Pro

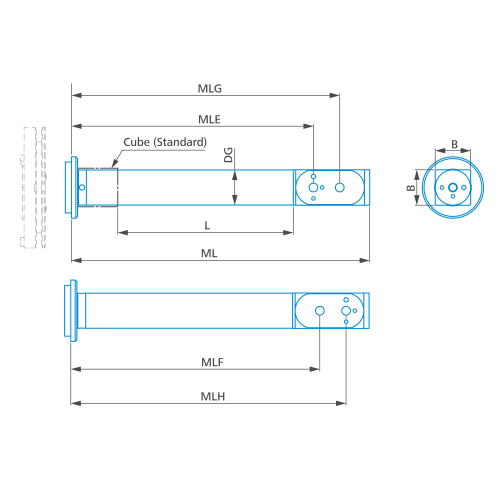

- Length (L)
- 100,0 mm
- Measuring Length
- 170,1 mm
- 2. Measuring Length (MLE)
- 138,0 mm
- 3. Measuring Length (MLF)
- 142,0 mm
- Material
- Carbon Fiber
- Ø Body (DG)
- 20,0 mm
- Width (B)
- 20,0 mm
- Weight
- 110,0 g

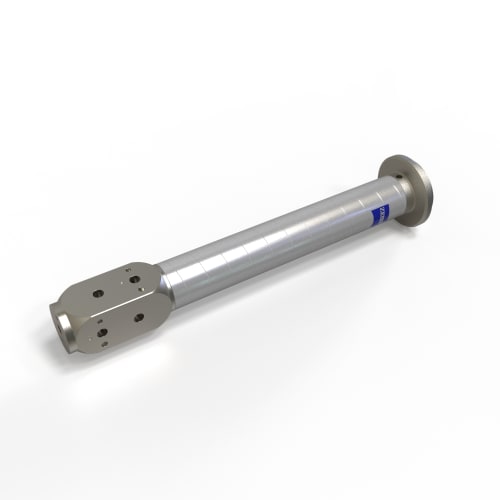

Extensión de placa VAST, doble cubo, ThermoFit Pro, MLE: 170.1, DGE: 20, BE: 20, peso: 110 g
Product note
ZEISS ThermoFit becomes REACH CFX® 3 - new name, same performance. Over 70% of measurement errors and fluctuations in reproducibility are due to unsuitable extensions. Especially with longer extensions, the influence on the stability of the measurement is very high. Due to the fastening of M5 pro components with the through bolt, no further elements can be attached on the opposite side. However, the offset holes mean that additional components can also be adapted opposite or at a 90° angle.
