REACH CFX® 3 M5 pro extensions are designed with a base of Ø20 mm and two index pins to prevent them from rotating. The angular alignment on the cube always remains constant, even after multiple removal and attachment. At the end of each extension, a cone receiver for connecting rotatable components.
- Application
- Extend
- Product Type
- Extension
- Extension Type
- Stylus Extension
- Accuracy level
- Medium - CFX 3
- Connection Type
- M5 Pro
- Connection Type Out
- Cone Receiver
- Length (L)
- 120,0 mm
- Material
- Carbon Fiber
- Ø Body (DG)
- 11,0 mm
- Weight
- 22,0 g

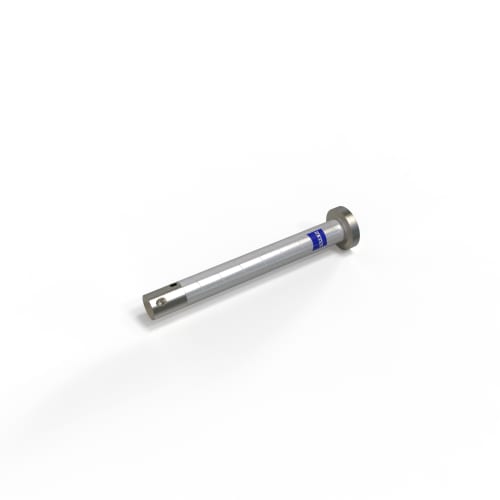

Extensión con receptor de cono, ThermoFit Pro, LE: 120, DGE: 11, peso: 22 g
Product note
ZEISS REACH CFX® 3 extensions are also available with the M5 pro connection system. In addition to the advantages of ZEISS carbon fiber technology, these extensions can be mounted in an easily reproducibly position. The index holes and matting pins also provide a torsion-free connector system. The patented solution is simple and safe - no special knowledge is required. The number of connection points are reduced and the probe system is arranged so that they cannot twist - thus increasing measuring accuracy and process reliability compared to standard M5 threaded systems. The positive is particularly noticeable in production measurements. REACH CFX® 1 and CFX® 5 extensions are available in the M5 pro version on request.
