Multi Sensor Racks (MRS) are used to store stylus systems and sensors on the coordinate measuring machine. System allows expansions for multiple levels- precisely fitting and versatile. The changing magazines are integrated into the machine software, so that the stylus system change is carried out automatically. All ZEISS configurations are supported by suitable probe sockets.
The MSR 2.0 consists of the 3 main components
1 - MSR column in various heights,
2 - Storage bars in various widths (for mounting on the MSR column),
3 - Probe sockets that hold various stylus systems.
Storage trays for measuring sensors are also available.
- Application
- Store
- Product Type
- Sensor Rack
- Machine
- SPECTRUM, CONTURA, PRISMO
- Material
- Aluminum

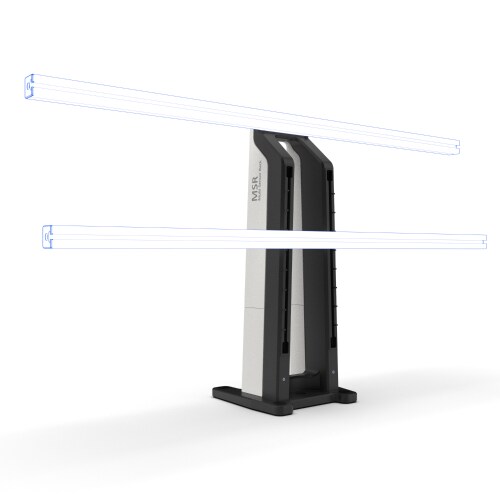

Multi-Sensor-Rack (MSR 2.0) column, for measuring range Z = 800 mm
- Fixed rigid column
- for measuring range Z = 800 mm
- allows the installation of up to 3 storage bars of measuring range X = 500 mm to = 1200 mm

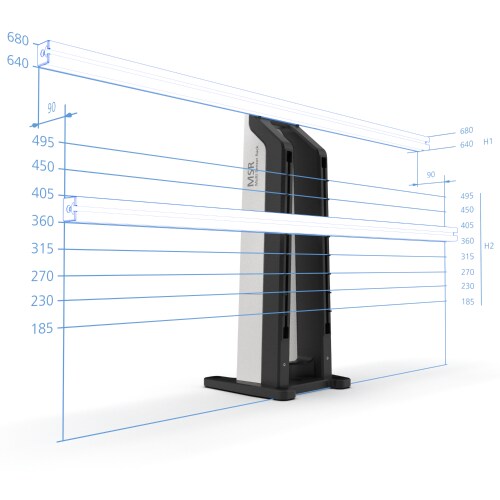

- upper storage bar is mounted at a fixed height, lower storage bar may be mounted at different heights in stages
- 3rd storage bar may also be mounted at different heights and requires a storage bar Adapter (extension).
Product note
Storage bars are sold separately (626100-9300-001, 626100-9300-002, 626100-9300-003, 626100-9300-004, 626100-9300-005)
3rd level will require a storage bar Adapter, sold seperately (626100-9300-005)
Probe sockets used to store stylus systems and sensors are sold separately.
