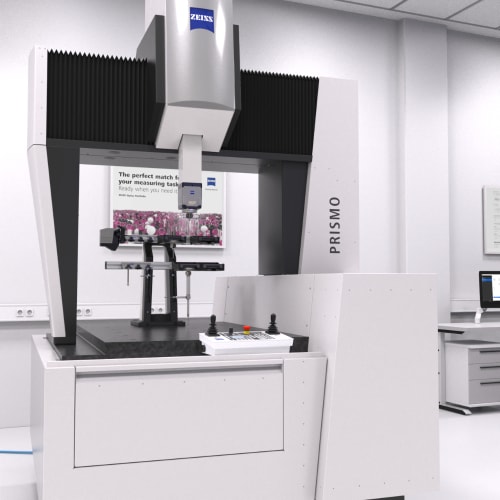

Multi Sensor Racks (MRS) are used to store stylus systems and sensors on the coordinate measuring machine. System allows expansions for multiple levels- precisely fitting and versatile. The changing magazines are integrated into the machine software, so that the stylus system change is carried out automatically. All ZEISS configurations are supported by suitable probe sockets.
The MSR 2.0 consists of the 3 main components
1 - MSR column in various heights,
2 - Storage bars in various widths (for mounting on the MSR column),
3 - Probe sockets that hold various stylus systems.
Storage trays for measuring sensors are also available.
- Application
- Store
- Product Type
- Sensor Rack
- Length (L)
- 590,0 mm
- Material
- Aluminum
- Measuring volume X axis
- 500

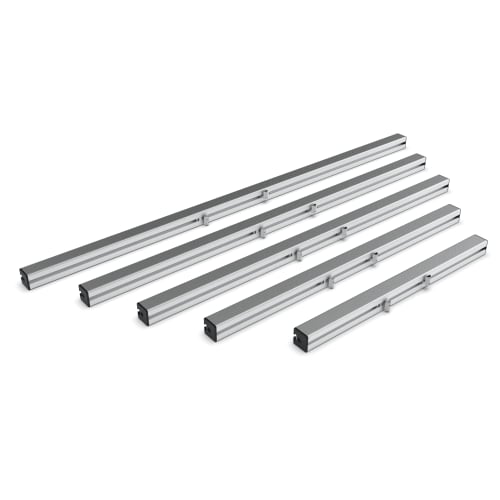

Storage bar X=500 for MSR 2.0 column
- Actual bar lengh = 590 mm, suitable for measuring range X = 500 mm
- Holds up to 4 VAST probe sockets or 3 triple VAST XXT probe sockets
Product note
Storage bars can only be used in combination with the MSR 2.0 (626100-9300-600 / 626100-9300-800)
Storage bars used as a 3rd level will require a storage bar Adapter, sold seperately (626100-9300-005)
Probe sockets used to store stylus systems and sensors are sold separately.
